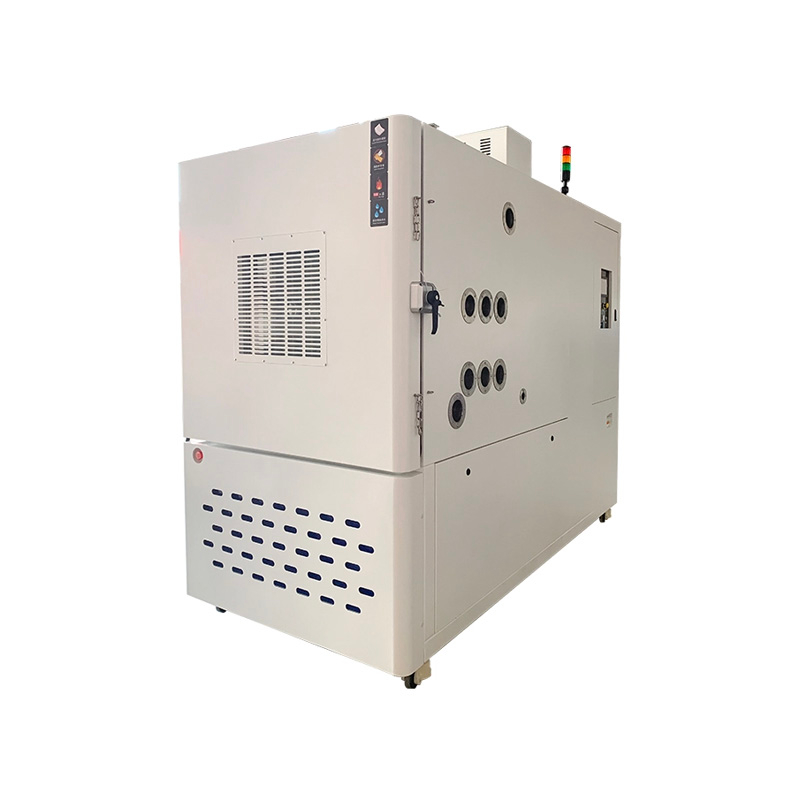

Programmable Temperature & Humidity Chamber

Programmable Temperature & Humidity Chamber can be applied to a variety of industrial fields, including automotive, computer, communications, defense, and new energy market, a wide range of applications need more reliable quality assurance and use safety. In particular, the importance of lithium battery as a new energy power battery energy storage has been successfully verified, and it is a representative of modern high-performance batteries. The increasing capacity and frequent use of possible faults and potential abnormal dangers are highly concerned by battery manufacturers and end users.

Availability:

Quantity:



Inquire Add to Basket

Product Description

Model	DB-TH-135	DB-TH-252	DB-TH-504	DB-TH-720	DB-TH-1000
Volume ( L)	135L	252L	504L	720L	1000L
Internal dimensions (W * D * Hmm)	500×450×600	600×600×700	800×700×900	900×800×1000	1000×1000×1000
External dimensions (W * D * Hmm)	770×1500×1600	870×1650×1700	1070×;1750×1900	1170×1850×2000	1270×2050×2000
Window size (W * H)	300×300	300×300	500×500	500×500	500×500
Temperature range	A: 0℃ ~100℃; B: -40℃ ~180℃; C: -60℃ ~180℃; D: -70℃ ~180℃ ;S: Customized
Humidity range	10%~98% R.H (5% humidity can be customized according to the user indicators)
Temperature resolution	0.1℃
Temperature fluctuation	≤±0.3℃
Temperature uniformity	≤2℃
Relative humidity fluctuation	≤±2%R.H
Humidity uniformity	≤±3%R.H
Heating rate	1~3℃/min
Cooling rate	0.7~1℃/min
Internal box material	Grade SUS 304 # stainless steel plate outer box made of cold rolled steel plate + paint treatment
Heat insulating material	Thermal insulation layer fire resistance P-U + high density ultrafine inlet insulation glass wool
Refrigeration system	Low noise compressor (mechanical refrigeration)
Cryogen	R404, R23 environmental protection refrigerant
Calorifier	Fully independent system, nickel-chromium alloy electric heating heater
Humidifier	Stainless steel armoured heater
